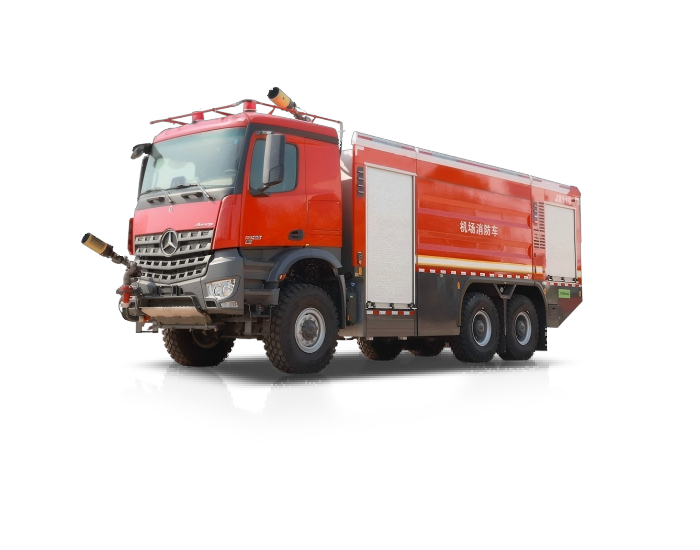

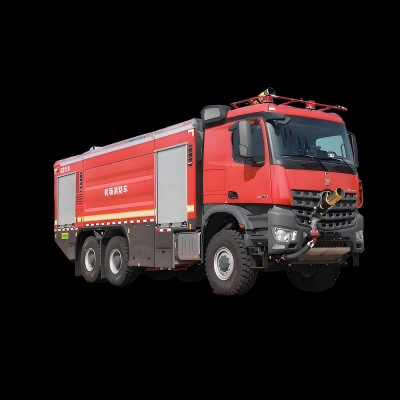

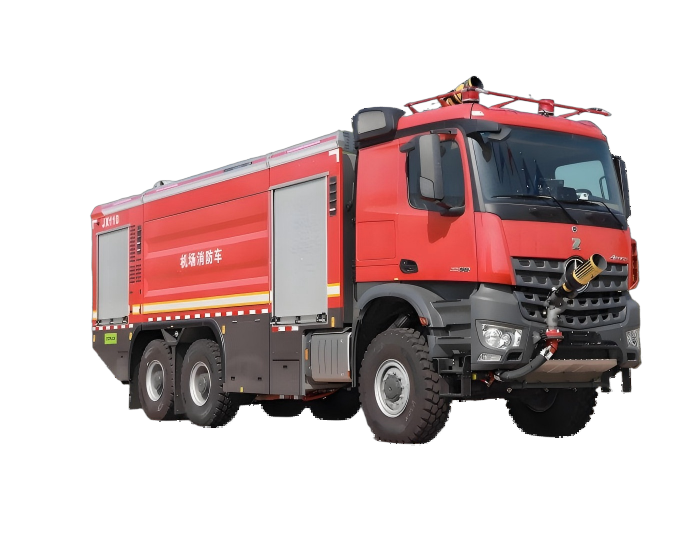

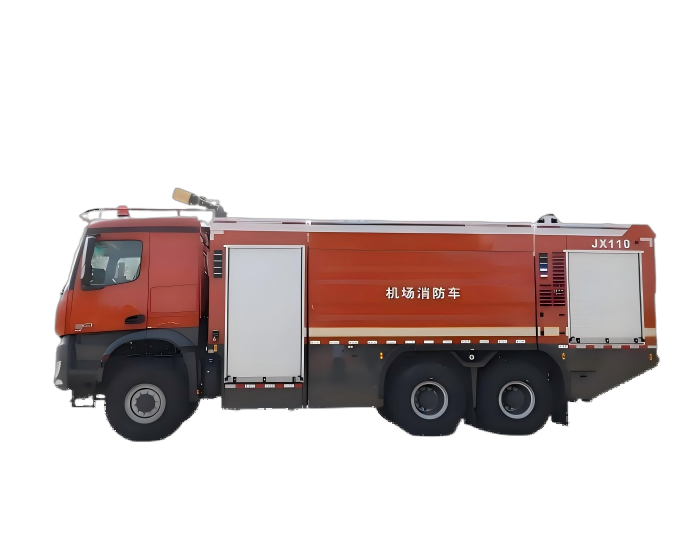

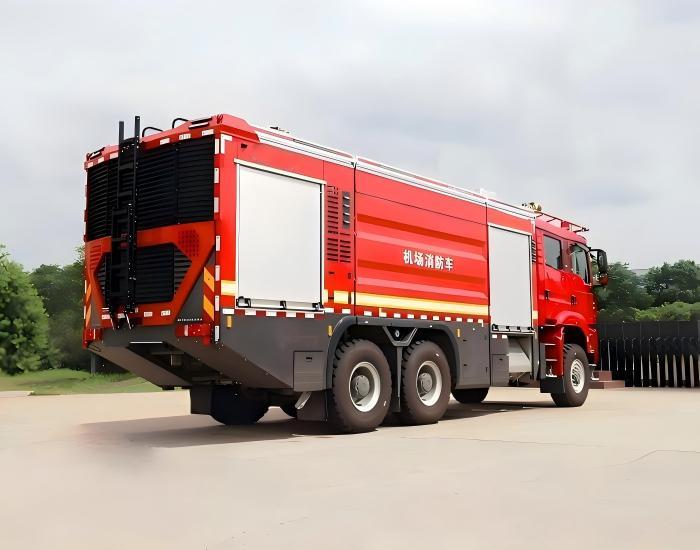

Mercedes Benz 6X6 Airport Fire Truck

Powerful drive, fast response

11450L (water 10000L, foam 1000L, dry powder 450kg)

Volume (L)

425kW

Engine power (kw)

4450+1450mm

Wheelbase（mm）

Mercedes Benz 6X6 Airport Fire Truck

Powerful drive, fast response

Volume (L)

11450L (water 10000L, foam 1000L, dry powder 450kg)

Engine power (kw)

425kW

Wheelbase（mm）

4450+1450mm

Request a Quote

Features

Related Recommendations

Request a Quote

Features

Powerful power, fast dispatch

The vehicle is equipped with a Mercedes-Benz high-performance engine and a full-time six-wheel drive system (6×6 drive). It still has excellent acceleration performance and stability in complex road conditions and emergency situations at the airport, ensuring that it arrives at the fire scene as soon as possible to carry out fire extinguishing and rescue tasks.

Professional system, powerful fire extinguishing

Equipped with advanced normal pressure/high pressure dual-purpose fire pump, efficient foam proportion mixing system and long-range water cannon, it can not only extinguish large aviation fuel fires, but also accurately strike small-scale fire sources, truly realizing "one vehicle with multiple functions, fast and efficient".

High passability, all-terrain adaptability

The three-axle drive chassis design combined with widened off-road tires and a powerful suspension system gives the vehicle excellent off-road performance. It can easily pass through airport runways, grass, mud or snowy ground, ensuring all-weather and all-scenario operations.

Intelligent driving and operating system

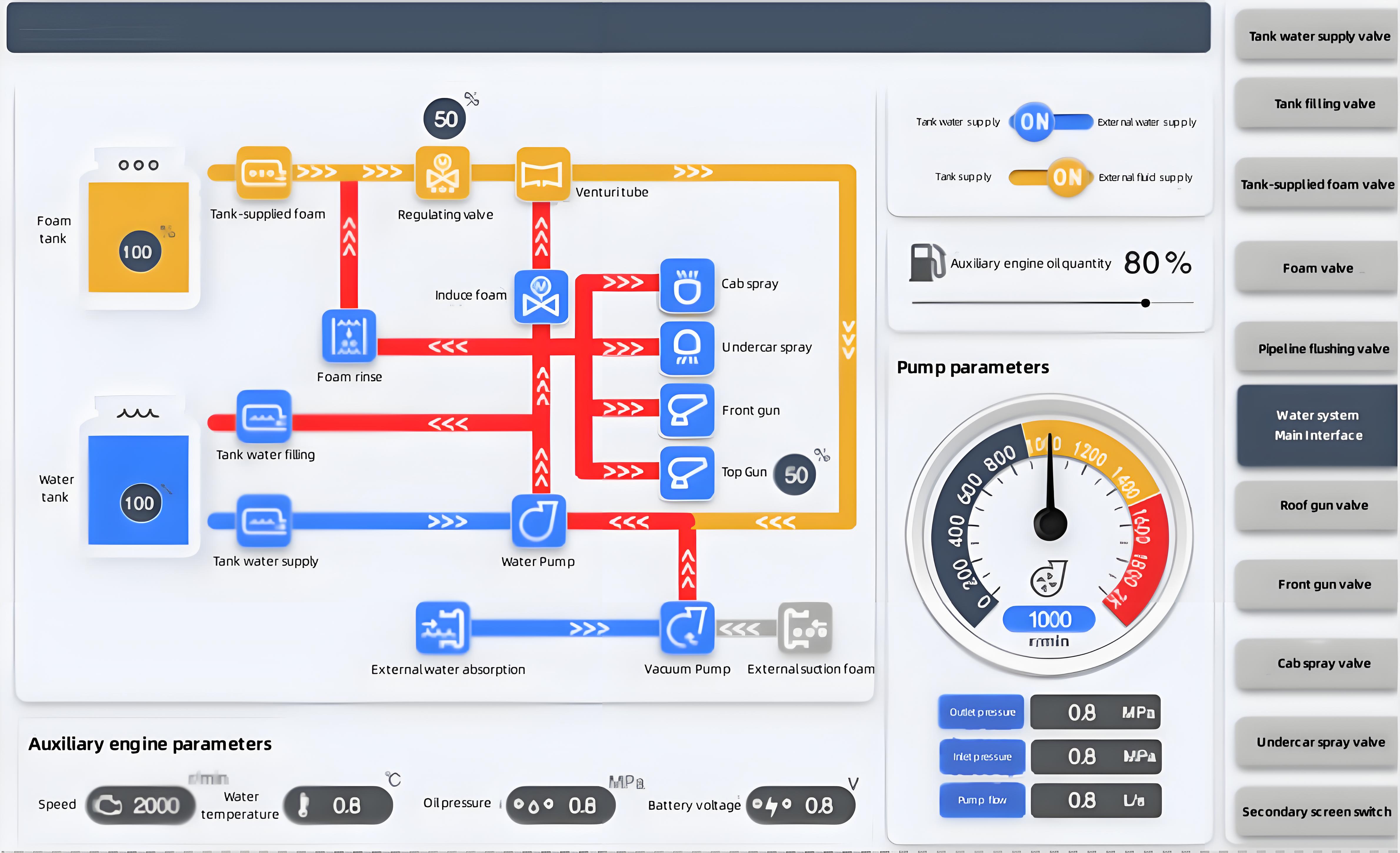

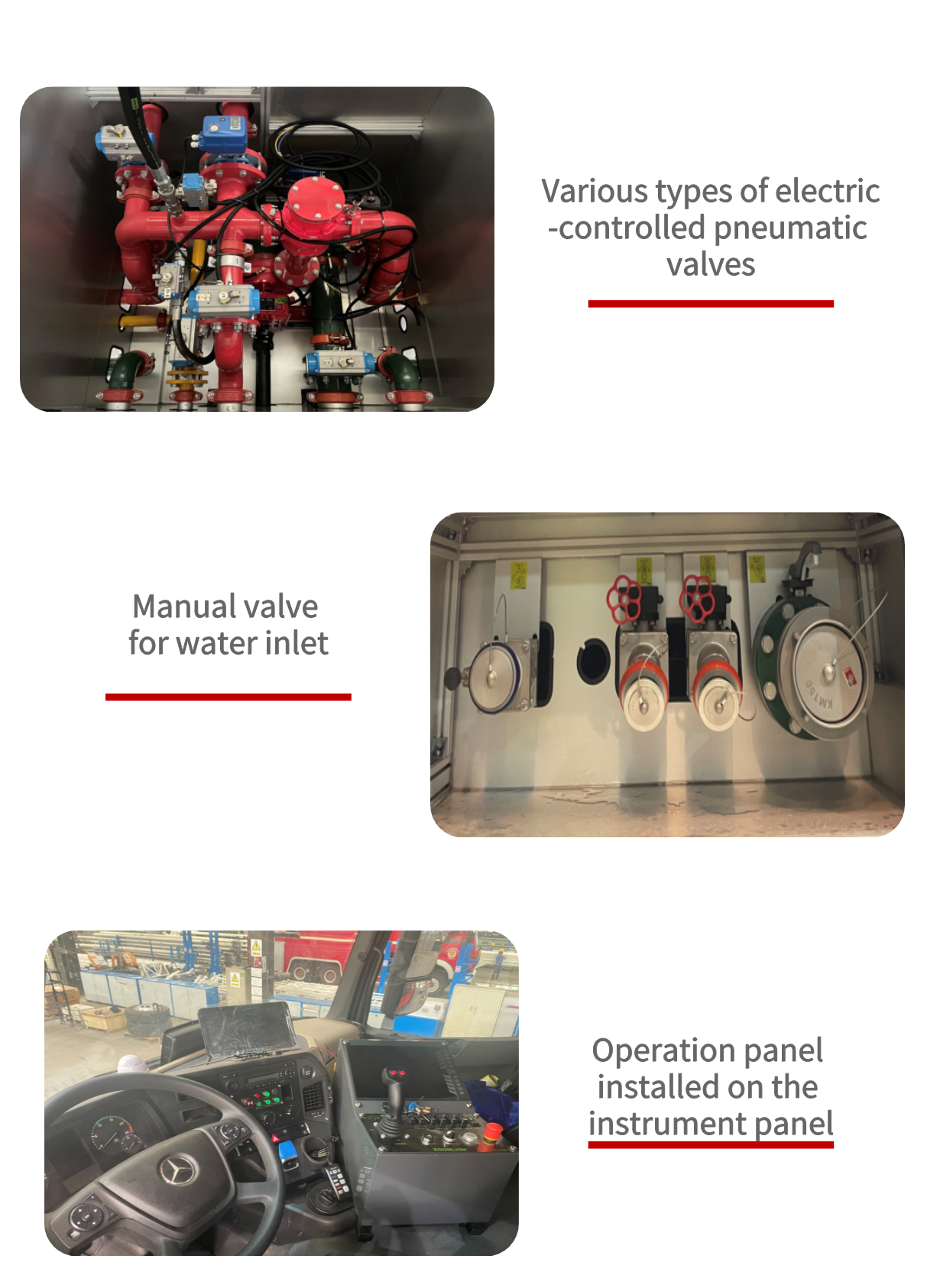

The vehicle is equipped with an integrated fire control terminal, an LCD multi-function instrument panel and an intelligent monitoring system, which enables centralized management of the fire protection system and the electronic control system, greatly improving operational convenience and combat efficiency, and ensuring scientific and efficient combat command.

Chassis model	Mercedes-Benz Arocs 3358E6 6×6 all-wheel drive
Engine model/type	OM473LA.6-55/inline 6-cylinder turbocharged intercooled diesel engine
Displacement	15.6 liters
Engine maximum net power	425kW (578 horsepower)/(at 1600r/min)
Engine maximum torque	2800Nm/(at 1100r/min)
Full load maximum speed	110km/h
Emission	Euro VI
Gearbox	Mercedes third-generation PowerShift automatic gearbox, 16 forward gears, speed ratio 11.7-0.69; 4 reverse gears
Acceleration performance	Full load 0~80 km/h acceleration time ≤35 seconds
Liquid carrying capacity	water 10000L, foam 1000L, dry powder 450kg

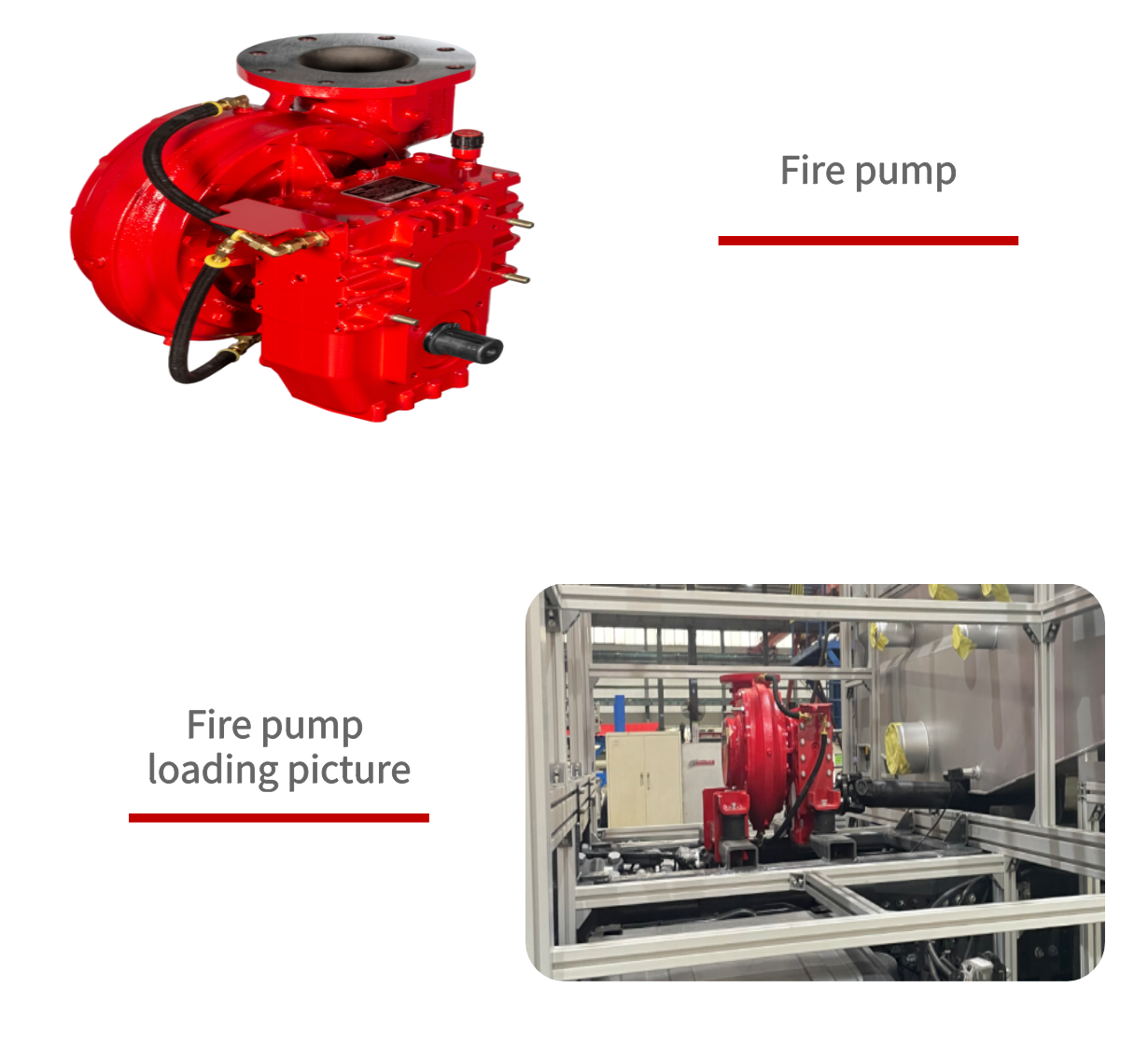

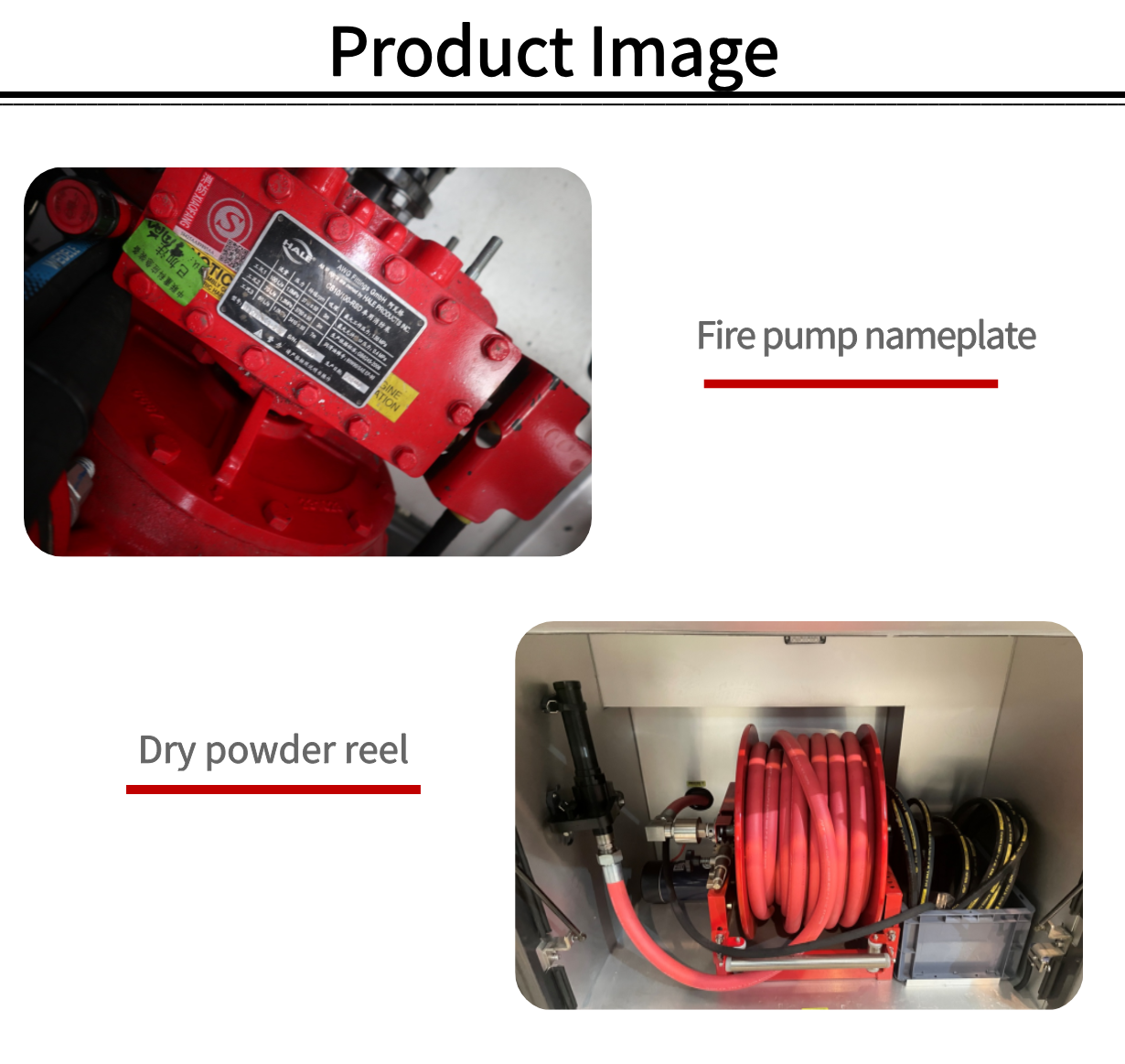

Fire pump	USA Hill CB10/100-RSD Fire Pump
Pump flow	6000L/min 1.0Mpa
Roof fire cannon	USA Elk PLKD10/80-7200EXM electric remote control roof cannon
Roof gun range	water ≥85m, foam ≥75m
Front fire cannon	USA Elk PLKD10/24-7100EXM electric remote control front fire cannon
Front gun range	water ≥55, foam ≥42m
other The airport's main foam fire truck is innovatively designed by combining advanced design concepts at home and abroad with the actual needs of firefighting. The whole vehicle has multiple safety protection measures, and its technical and performance parameters are at an advanced level. It uses a Mercedes-Benz 6×6 all-wheel drive off-road chassis, a large vehicle liquid capacity, and is equipped with a conventional Class B foam system, which is specially tailored for fighting Class A and Class B fires at airports. The vehicle has excellent acceleration performance (0~80km/h continuous shift acceleration time ≤35 seconds), and the cab is equipped with a one-button water and foam quick control function; the all-aluminum alloy body has light weight, high strength, and good corrosion resistance. It can carry a variety of emergency rescue equipment; it is the first choice for airport fire extinguishing.
