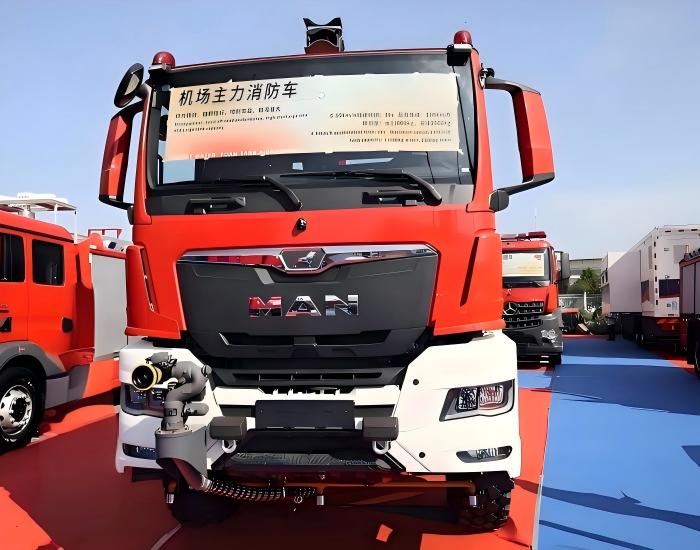

MAN 6X6 Airport Fire Truck

A fire-fighting monster designed for airports

13000L (water 11000L, foam 2000L)

Volume (L)

375kw

Engine power (kw)

4200mm+1400mm

Wheelbase（mm）

MAN 6X6 Airport Fire Truck

A fire-fighting monster designed for airports

Volume (L)

13000L (water 11000L, foam 2000L)

Engine power (kw)

375kw

Wheelbase（mm）

4200mm+1400mm

Request a Quote

Features

Related Recommendations

Request a Quote

Features

Powerful power system, rapid response to fire

Equipped with a high-performance MAN diesel engine and matched with an all-wheel drive 6X6 chassis, it has excellent off-road capabilities and high-speed driving performance. It can reach any area of the airport in the shortest time and effectively respond to emergency fire situations.

Large capacity, strong fire extinguishing ability

Equipped with large-capacity water tanks and foam tanks, combined with high-pressure fire pumps and multi-functional turrets, it can achieve long-distance, large-scale, and efficient spraying to quickly control fires in aircraft or airport facilities.

Designed for airports, flexible to operate

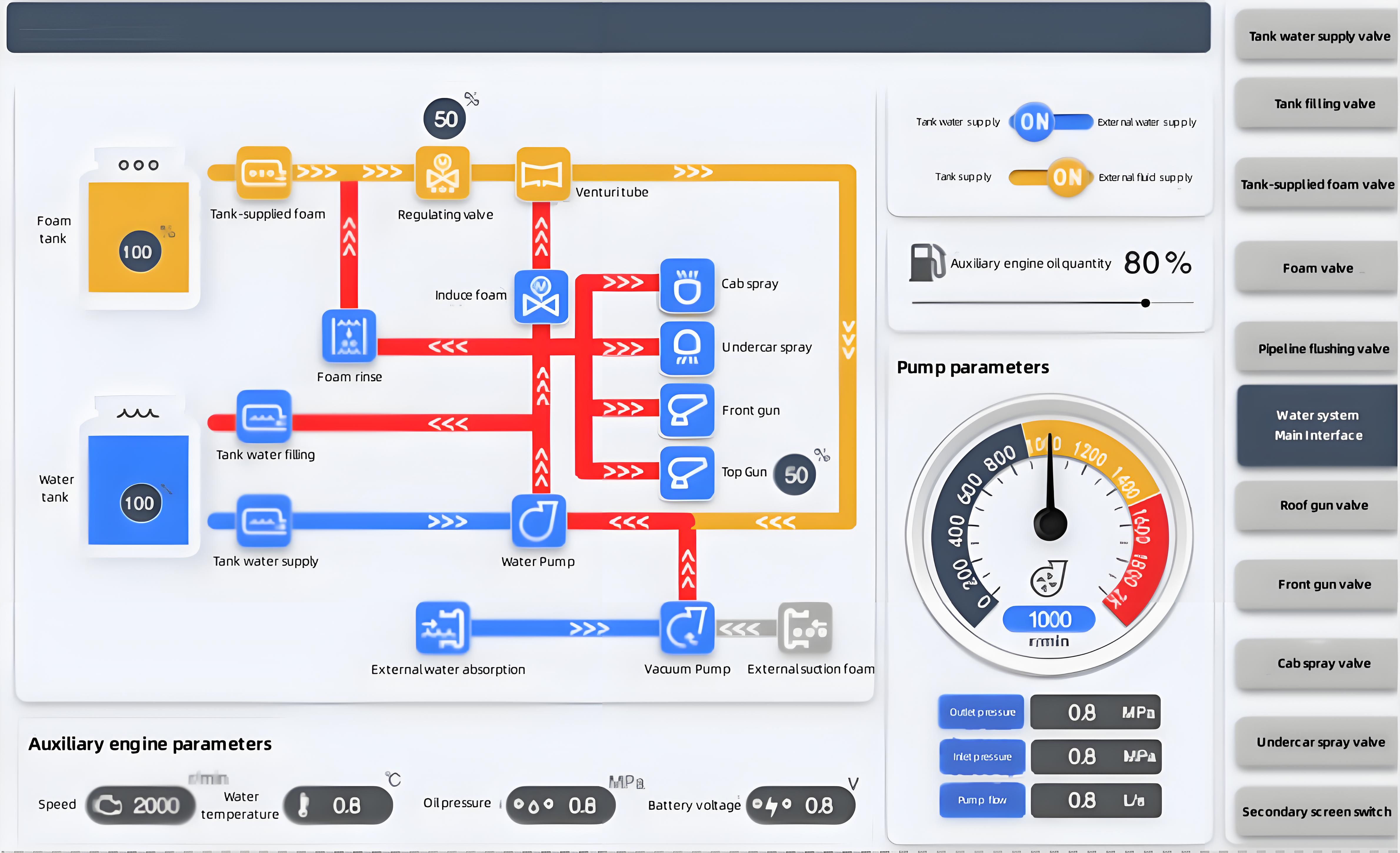

Equipped with a fully automatic transmission and intelligent control system, it makes driving smoother and more stable, and can be flexibly dispatched even on runways, lawns or complex terrains to ensure fast and efficient rescue.

High standards, guaranteed

The vehicle body is made of high-strength material structure, the cab has good protection, and is equipped with advanced equipment such as thermal imaging system, night vision assistance, emergency lighting, etc., which enhances the combat capability at night and in harsh environments and fully guarantees the safety of operators.

Chassis model	MAN TGS 33.510 6×6 all-wheel drive
Engine model/type	D2676LF98/inline 6-cylinder turbocharged intercooled diesel engine
Displacement	12.4 liters
Engine maximum net power	375 kW/510 hp
Engine maximum torque	2600Nm/930-1350rpm
Full load maximum speed	100km/h
Emission	Euro VI
Transmission	MAN TipMatic® manual transmission, gear layout: 12 forward gears + 2 reverse gears, transfer case: G172
Wheelbase	4200mm+1400mm
Acceleration performance	full load 0~80 km/h acceleration time ≤35 seconds
Liquid capacity	water 11000L, foam 2000L

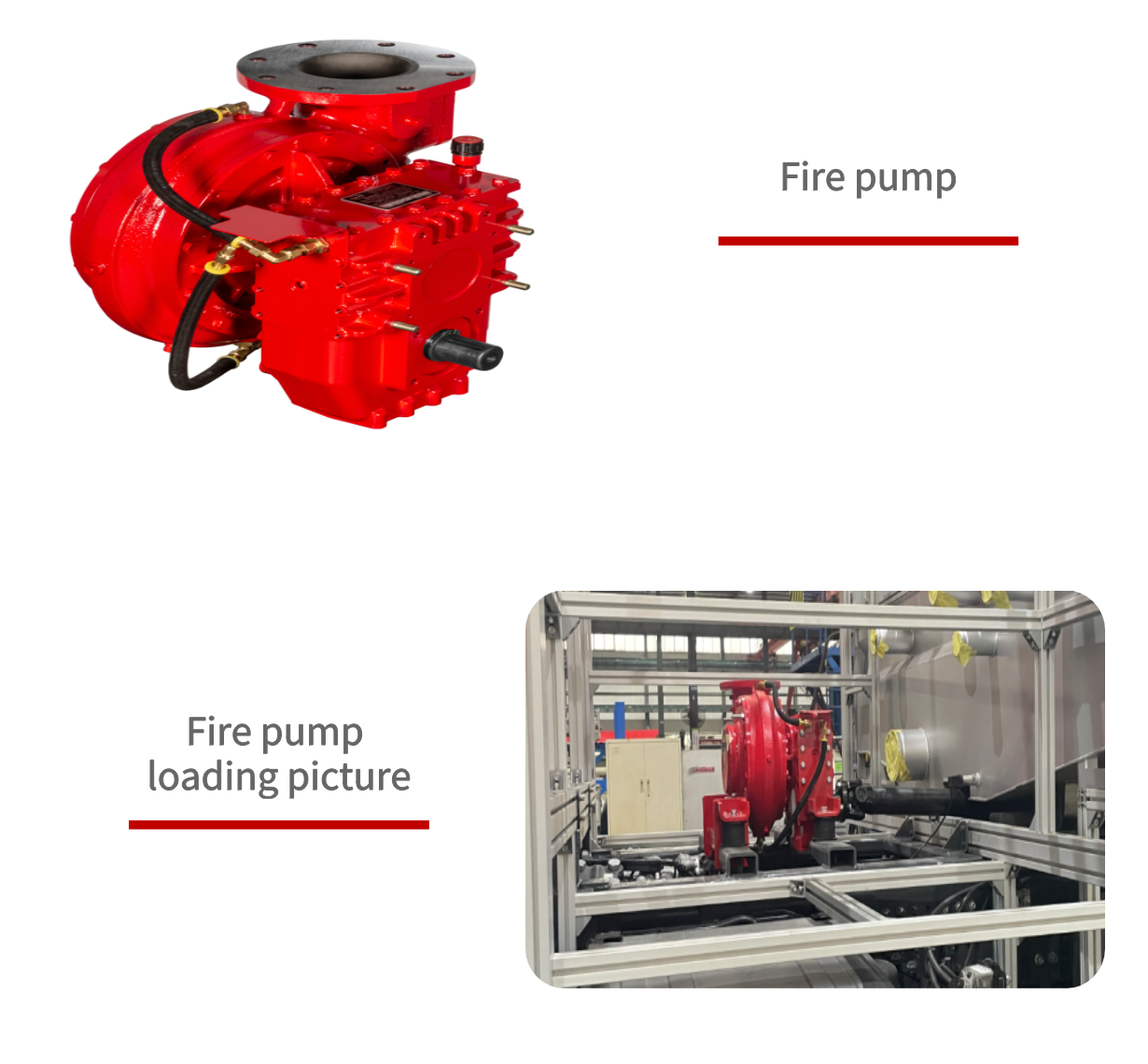

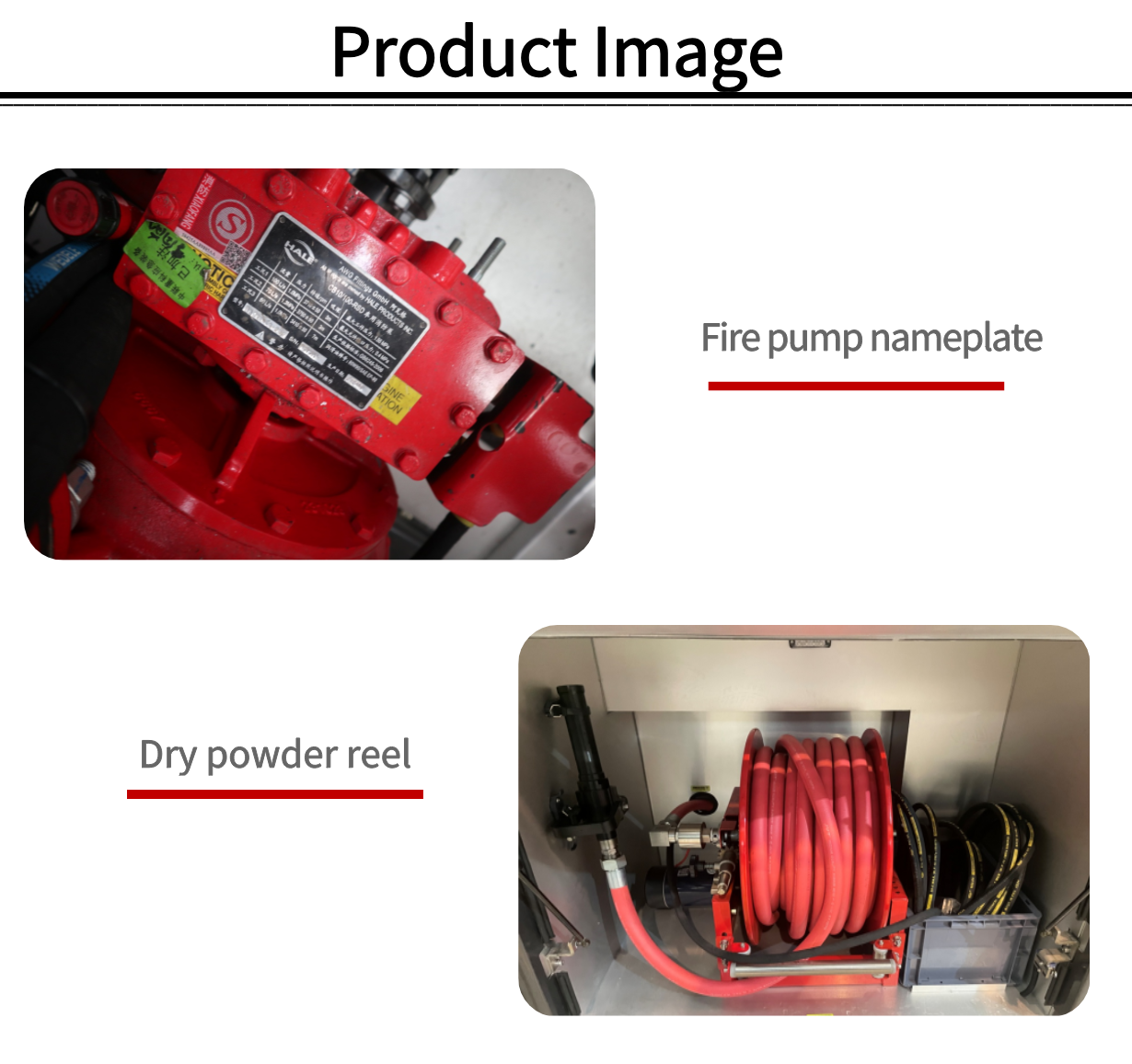

Fire pump	USA Hill CB10/100-RSD fire pump
Pump flow	6000L/min, pressure: 1.0MPa
Roof fire cannon	USA Elk PLKD10/80-7200EXM electric remote control roof fire cannon
Roof fire cannon range	water ≥85m, foam ≥75m
Front fire cannon	USA Elk PLKD10/24-7100EXM electric remote control front fire cannon
Front fire cannon range	water ≥55m, foam ≥42m
other The airport's main foam fire truck is innovatively designed by combining advanced design concepts at home and abroad with the actual needs of firefighting. The whole vehicle has multiple safety protection measures, and its technical and performance parameters are at an advanced level. It uses a Mercedes-Benz 6×6 all-wheel drive off-road chassis, a large vehicle liquid capacity, and is equipped with a conventional Class B foam system, which is specially tailored for fighting Class A and Class B fires at airports. The vehicle has excellent acceleration performance (0~80km/h continuous shift acceleration time ≤35 seconds), and the cab is equipped with a one-button water and foam quick control function; the all-aluminum alloy body has light weight, high strength, and good corrosion resistance. It can carry a variety of emergency rescue equipment; it is the first choice for airport fire extinguishing.
