Chenglong 6x4 Sewer Cleaning Truck

Large capacity and powerful power

8m³ Shimizu/10m³Sewage

Volume

YCS06270-60

Engine

4500+1350mm

Wheelbase

Chenglong 6x4 Sewer Cleaning Truck

Large capacity and powerful power

Volume

8m³ Shimizu/10m³Sewage

Engine

YCS06270-60

Wheelbase

4500+1350mm

Request a Quote

Features

Related Recommendations

Request a Quote

Features

Wide applicability

It is suitable for the maintenance and cleaning of urban municipal pipelines, including sewage pipes, rainwater pipes, etc. At the same time, in some industrial fields, such as chemical, petroleum, food processing and other industries, it can also be used to clean industrial pipelines and treat industrial wastewater and waste residues. In addition, it is also competent for cleaning temporary sewage systems and septic tanks at large construction sites.

High degree of automation

Equipped with advanced control system, it can realize automatic control of cleaning and suction operations. The operator can easily control the extension and rotation of the cleaning nozzle, as well as the start and stop of the vacuum pump, suction intensity and other parameters through the operation console in the cab, reducing the tediousness and labor intensity of manual operation.

Strong operational capabilities

The tank volume of a large-scale cleaning and suction truck is relatively large, usually up to 10-30 cubic meters or even larger. This enables it to handle a large amount of sewage and dirt in one operation, reducing the number of frequent round trips and discharges, and improving work efficiency.

Environmental protection and safety

Equipped with various safety devices, such as anti-overfilling device, emergency brake system, etc., to ensure the safety of operators and the normal operation of the vehicle. When operating in dangerous areas, these safety devices can effectively reduce the risk of accidents.

Tank volume(m³)	18
Effective suction distance（m）	≥8
Inhalation time（min）	≤5
Unloading time（min）	≤5
Maximum vacuum of the system（MPa）	≤-0.09
use	It can be used to suck and clean up silt, sand, sewage, feces, gravel, broken bricks and other liquid and semi-liquid wastes in various ditches and sewers. It can also be used for the suction and transfer of wastewater and sediments in industries such as oil refining, steel, chemical industry and sanitation.

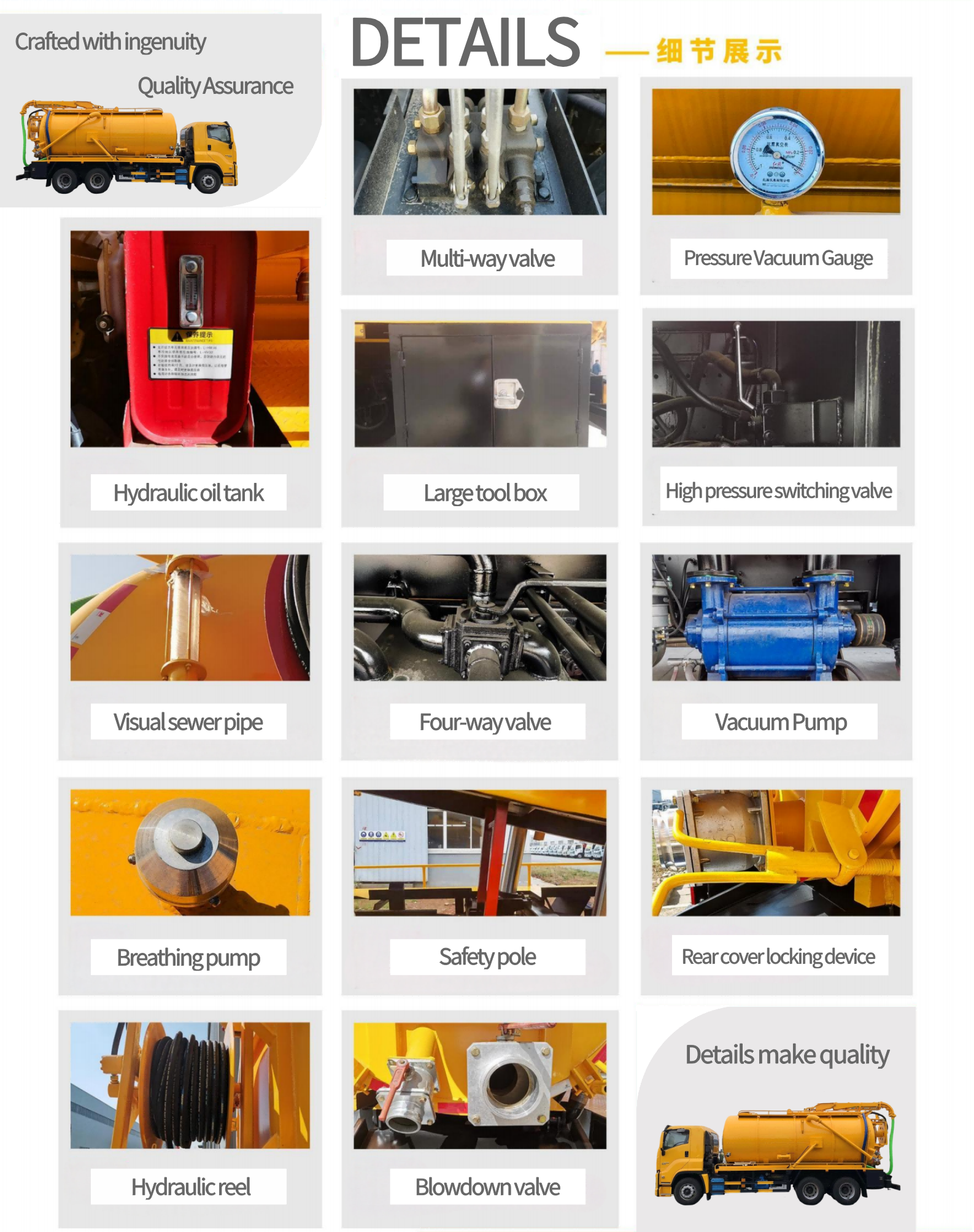

Other The tank body is made of high-quality carbon steel, the head is one-time die-cast, the tank body has a built-in partition, the rear cover can be opened, and it can be turned over and unloaded. The overall structure is simple, reliable, and has a large capacity. The interior of the tank body has been pre-treated and sprayed with rust primer for high-efficiency anti-corrosion. The vacuum pump, four-way valve and other suction system components are all made of well-known domestic brands, with strong suction and high efficiency. All gas circuit components are made of well-known domestic brands, with stable performance and reliable quality. This model uses a hydraulic control system. The operation is simple, and the opening and closing of the tank tail cover and the lifting and falling of the tank can be completed by pushing and pulling the handle. There is a hand washing device at the rear of the vehicle to store clean water, which can be used by the operator to wash after work. The product is equipped with an overflow valve and a full tank alarm function to prevent sewage and impurities from entering the suction system after the tank is full, thereby damaging the suction system. Its suction system is equipped with a vacuum pressure gauge, which can detect the internal pressure of the tank in real time and reflect the operating status of the system. There is a safety support rod at the lower end of the tank, which can play a role in safety support when the tank is lifted, inspected, and maintained.
